Diamond Plate Select UltraSoft Comfort
Diamond Plate Select Black/Yellow Border
Diamond Plate Select Black #495
Diamond Plate Select UltraSoft Comfort
Diamond Plate Select Black/Yellow Border
Diamond Plate Select Black #495

Diamond Plate Select Custom

From $5.65 per sq. ft.

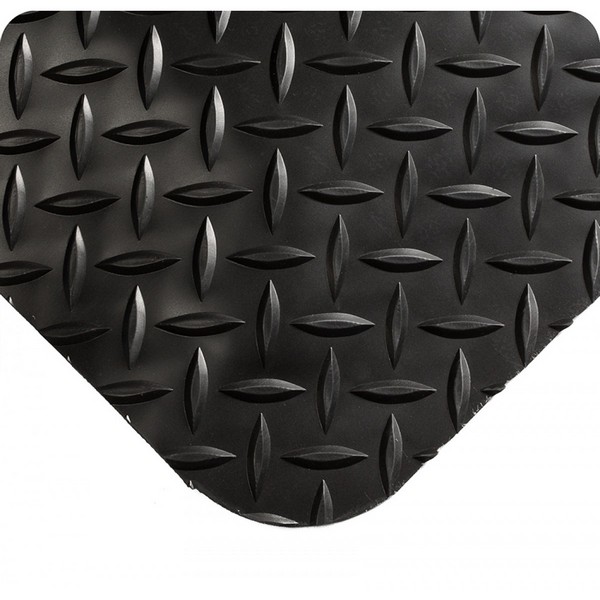

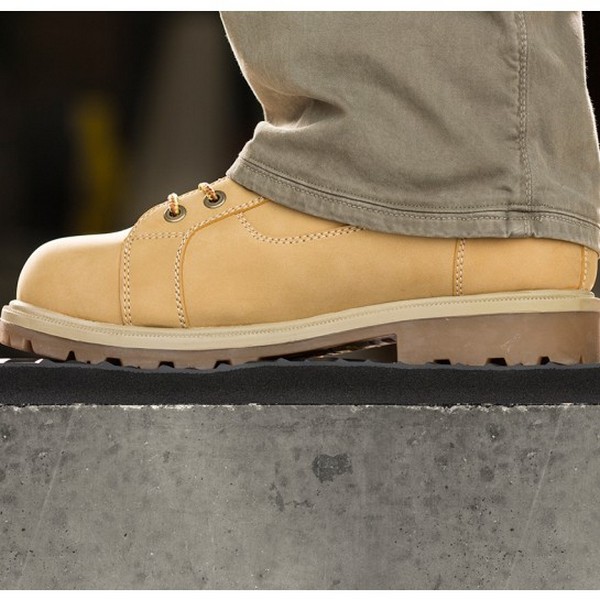

Diamond-Plate Select is an excellent alternative to similar Spongecote mats. Its high-tech industrial surface withstands heavy use while its’ specially formulated blown-vinyl Flex-Link® sponge base lessens standing worker fatigue. Choose from two different colors to highlight departments or operations, and say hello to comfort without blowing your budget! One Year Limited Warranty.

View Price Chart

The minimum custom cut length is 5’, for sizes shorter than 5’ please contact us for a quote – 1-866-411-6287

Total Area (sq. ft.)
Product Price
SKU: 495C Category:

Description

Wearwell Logo

Diamond Plate Select Custom Features:

  • Custom sizes are available in 2′, 3′, and 4′ widths to 75′ in length.
  • Select your width and length to calculate your square footage and price.
  • If you are ordering more than 1 unit of the same size, enter that number in the Quantity box.
  • Orders exceeding 150 pounds in total weight will show $0 for the shipping amount, please proceed with checkout and we will contact you with the freight cost.
  • Custom sizes are not returnable.

All Prices in US Dollars





Additional information

Weight N/A
Width

2 x 9/16" Black, 3 x 9/16" Black, 4 x 9/16" Black, 3 x 11/16" Black, 2 x 15/16" Black, 3 x 15/16" Black, 4 x 15/16" Black, 2 x 9/16" Black/Yellow, 3 x 9/16" Black/Yellow, 4 x 9/16" Black/Yellow, 3 x 11/16" Black/Yellow, 2 x 15/16" Black/Yellow, 3 x 15/16" Black/Yellow, 4 x 15/16" Black/Yellow

Pricing

Custom Sizes
(per square ft.)
Black
9/16″
BL/Yellow
9/16″
Black
11/16″
BL/Yellow
11/16″
Black
15/16″
BL/Yellow
15/16″
2′ width $6.20 $6.85 NA
 NA
 $8.55 $9.35
3′ widths $5.65 $6.75 $7.40
 $8.05
 $8.15 $8.85
4′ widths $5.65 $6.75 NA
 NA
 $8.15 $8.85
All prices are per square foot. The minimum custom cut length is 5’, for sizes shorter than 5’ please contact us for a quote – 1-866-411-6287
*Custom sizes are available in 2′, 3′ and 4′ widths up to 75′ in length. Custom sizes are not returnable. Please click the button below to order a custom size Diamond Plate Select mat.

Specs

Uses: All dry work areas
Compound: Vinyl surface with a Flex-Link® sponge base
Compression: .315 inches @ 35 psi per ASTM D575
Compression UltraSoft: .45 inches @ 35 psi per ASTM D575
Coefficient of Friction: .68 Dry per ASTM F1677
Tabor Abrasion: 1% lost @ 1,000 cycles per Fed Std. 193
Flammability: “A” Rating per MVSS 302
Edges: Safety beveled
Thickness: Approx. 9/16″, UltraSoft – Approx. 15/16″
Colors: Black or Black/Yellow
Warranty: 1 year, conditional

MSDS

Video

Diamond Plate Matting -What the Pro’s Demand!

Reviews

There are no reviews yet.

Be the first to review “Diamond Plate Select Custom”

Your email address will not be published. Required fields are marked *
