#541 F.I.T. Solid Custom Modular Flooring#540 F.I.T. Open Custom Modular Flooring#542 F.I.T. Open Grit Custom Modular Flooring#541 FIT Modular Solid Surface#543 F.I.T. Solid with GritShield#540 FIT Open Grid Surface#542 F.I.T. Open with GritShield#541 FIT Modular Solid Surface#540 FIT Open Grid Surface#541 FIT Solid Connected#540 FIT Open Grid ConnectedFIT Solid underside#540 FIT Open Grid Surface Red#540 FIT Open Grid Surface Red#540 FIT Open Grid Surface Green#540 FIT Open Grid Surface Green tileFIT Modular Flooring Yellow RampFIT Modular Flooring Yellow CornerFIT Modular Flooring Black RampFIT Modular Flooring Black Corner
F.I.T. Modular Flooring can be rolled up
#541 F.I.T. Solid Custom Modular Flooring

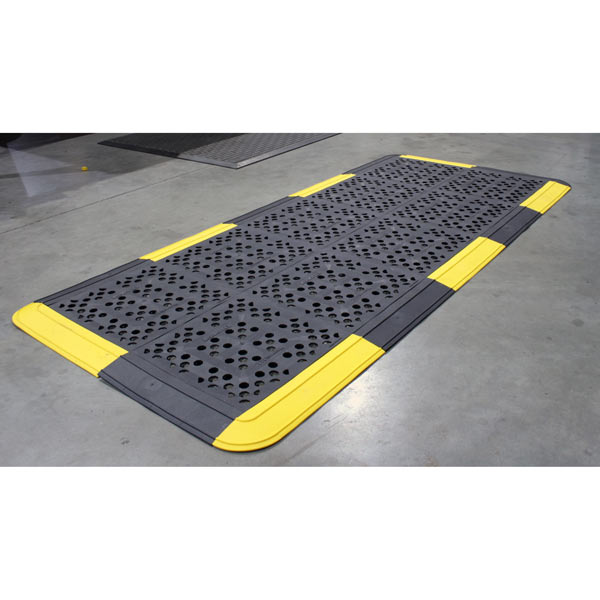

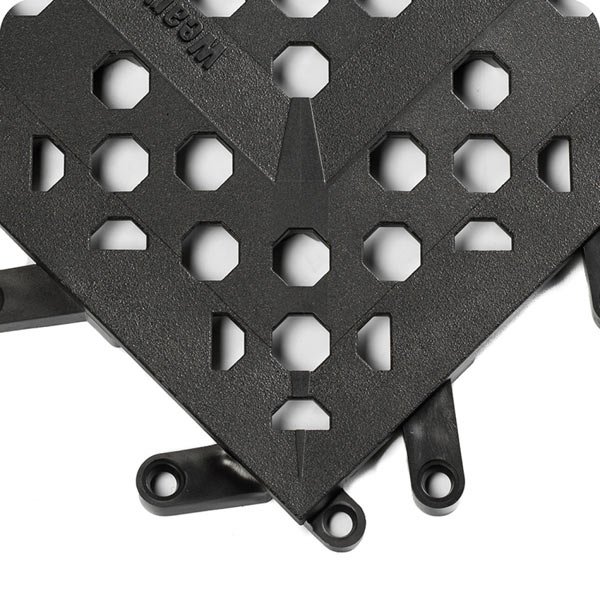

#540 F.I.T. Open Custom Modular Flooring

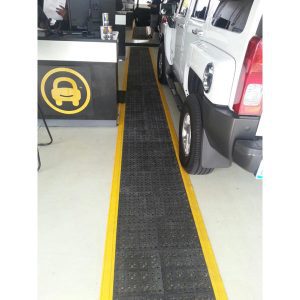

#542 F.I.T. Open Grit Custom Modular Flooring
#541 FIT Modular Solid Surface
#543 F.I.T. Solid with GritShield

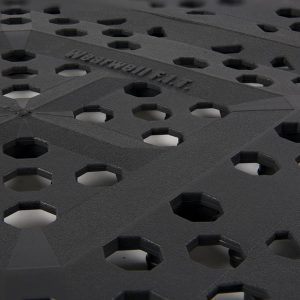

#540 FIT Open Grid Surface
#542 F.I.T. Open with GritShield
#541 FIT Modular Solid Surface
#540 FIT Open Grid Surface
#541 FIT Solid Connected
#540 FIT Open Grid Connected

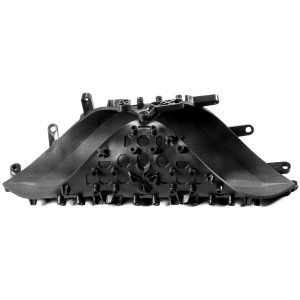

FIT Solid underside
#540 FIT Open Grid Surface Red
#540 FIT Open Grid Surface Red
#540 FIT Open Grid Surface Green
#540 FIT Open Grid Surface Green tile
FIT Modular Flooring Yellow Ramp

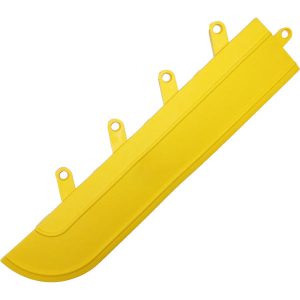

FIT Modular Flooring Yellow Corner
FIT Modular Flooring Black Ramp
FIT Modular Flooring Black Corner

FIT Interlocking Flooring

From $3.70

FIT Interlocking flooring is the most versatile 12″ x 12″ (30 cm x 30 cm) interlocking ergonomic flooring system on the market to create your own custom flooring of any size. The patented LockSafe connectors simply snap together and configure to fit your exact workspace. F.I.T.™ Open features an open-hole design that allows for rapid and complete drainage of fluids. The surface slants towards the holes to facilitate quick drainage and to assure a safe, dry standing area for the worker. F.I.T Solid offers a solid low profile surface that can withstand heavy foot traffic and provide comfort to the standing worker. FIT Interlocking flooring can be left connected and rolled up for storage or routine maintenance. Beveled ramps in black or safety yellow are available to finish the perimeter of any F.I.T.™ installation.

We offer pre-sized, F.I.T. Interlocking KITS for individual workstations with FIT Open tiles and yellow ramps. KITS can be ordered with or without GritShield for added traction.

View Price Chart

Clear

Description

FIT Interlocking Flooring is innovation made simple: The most versatile, functional and comfortable 12″ x 12″ x 5/8″ modular tile ever created. FIT modular flooring features an angular “LockSafe” interlocking system providing a very stronger connection, yet the tiles easily “zip” apart for re-positioning. FIT tiles provide exceptional comfort with an ergonomic design and PVC formula that dramatically reduce fatigue and lead to increased worker productivity.

  • Customizable in 3″ (8 cm) increments.
  • Multiple sizes of pre-assembled F.I.T. Flooring KITS with attached yellow safety borders for individual workstations.
  • Secure and seamless connections. Connected flooring can be rolled up easily for storage or maintenance.
  • Silicone-Free, PVC tile.  Both FIT Open and Solid tile can be ordered with GritShield for additional traction.
  • Open Grid design offers superior traction and drainage in slippery work areas.
  • Easy Ramp System – one ramp fits both “male” and “female” edges.
  • Outstanding Value for your Cost Reduction Initiatives – Save on replacement costs, installation time, and employee down time.
  • No-Fuss Installation – just snap the tiles together and configure to fit your exact work spaces.
  • F.I.T is J.I.T. – Quickly modify any work center to ergonomic specs.
  • Overall thickness 5/8″ (16 mm).

Additional information

Weight 20 lbs
Size

540-FIT Open Black, 540-FIT Open Red, 540-FIT Open Green, 541-FIT Solid Black, 542-FIT Open Grit Black, 543-FIT Solid Grit Black, Black Ramp, Black Corner, Yellow Ramp, Yellow Corner

Unit

Single, Case

Item # Description Color Size Single Case Case
540 F.I.T. Open Grid Black 12″ x 12″ $5.50 $99.75 20
540 F.I.T. Open Grid Green 12″ x 12″ NA $204.20 20
540 F.I.T. Open Grid Red 12″ x 12″ NA $204.20 20
541 F.I.T. Solid Black 12″ x 12″ $5.50 $99.75 20
542 F.I.T. Open with GritShield Black 12″ x 12″ $9.90 $179.50 20
543 F.I.T. Solid with GritShield Black 12″ x 12″ $9.90 $179.50 20
Edging F.I.T. Edging Ramps Black or Yellow 3″ x 12″ $3.70 $66.85 20
Edging
F.I.T. Edging Corners Black or Yellow 3″ x 15″ $3.70 $13.40 4



Product Specifications

Suitable Environment Dry, Wet, Oily
Type Anti-Fatigue Flooring
Customization Level Fully Customizable
Solid or Drainage Both
Compound PVC
Recycled >80%
Colors Black, Red or Green (#540 Open Grid only)
Warranty 1 year

Test Results

Property Test / Result
Temperature Range 10 to 110 F
Coefficient of Friction (#540/541) ASTM F1677 / Dry: COF = .81 / Wet: COF = .49
Coefficient of Friction (#542/543-Grit) ASTM F1677 / Dry: COF = 1.1 / Wet: COF = .63
Flammability MVSS 302 / ‘A’; Rating
Taber Abrasion ASTM D 3884 / 1% loss



Q: WHAT ARE THE BENEFITS OF USING ANTI-FATIGUE FLOORING?
A: Anti-fatigue flooring is designed to offer a wide range of benefits to employees and employers. Anti-Fatigue flooring can increase worker productivity, reduce slips, trips and falls and improve the overall health of your employees.

Q: HOW DOES ANTI-FATIGUE FLOORING IMPROVE OVERALL HEALTH OF MY EMPLOYEES?
A: Standing long-term, especially on hard, unforgiving concrete leads to lower back pain, swelling of joints and poor circulation that can lead to varicose veins. Standing on anti-fatigue flooring allows for continuous muscle movement which leads to increased blood flow to the legs, feet and back. Continuous blood circulation reduces fatigue, alleviates back pain and reduces swelling.

Q: HOW DOES ANTI-FATIGUE FLOORING INCREASE EMPLOYEE PRODUCTIVITY?
A: Fatigue eventually leads to lack of focus and concentration on the task at hand. Anti-fatigue flooring reduces worker fatigue allowing them to remain focused on the job at hand.

Q: WHAT IS MEANT BY “CUSTOMIZABLE IN 3″ INCREMENTS”?
A: Unlike other modular tiles available in the market, our patented LockSafe connection can be cut every 3″ without losing the ability to connect to adjoining tiles.

Q: HOW DO I CUT F.I.T. TILES?
A: F.I.T. tiles can be cut using industrial shears, but for larger installation areas we suggest a band saw or similar cutting equipment.

Q: WHAT’S THE DIFFERENCE BETWEEN F.I.T. AND ERGODECK?
A: Think of F.I.T. as “ErgoDeck Light”. Both flooring products share the same LockSafe system for secure connections, but F.I.T. is a lower profile, smaller footprint tile.

Q: DO I NEED TO USE ADHESIVES?
A: One of the biggest benefits of the LockSafe system is a secure, dependable connection that snaps together and holds tight in-use, but zips apart for reconfiguration or replacement!

Q: ARE THE COLORS SHOWN ON YOUR WEBSITE THE EXACT COLOR I SHOULD EXPECT TO RECEIVE?
A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
