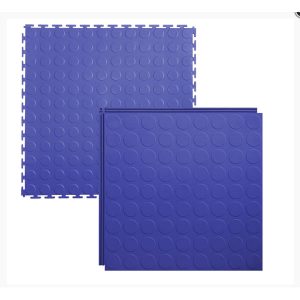

Lock-tile interlocking tiles coin
LockTile interlocking tiles pattern

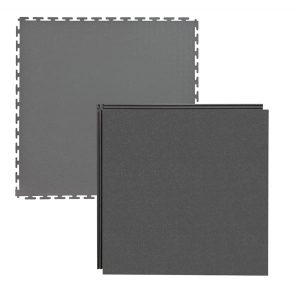

LockTile interlocking tiles smooth

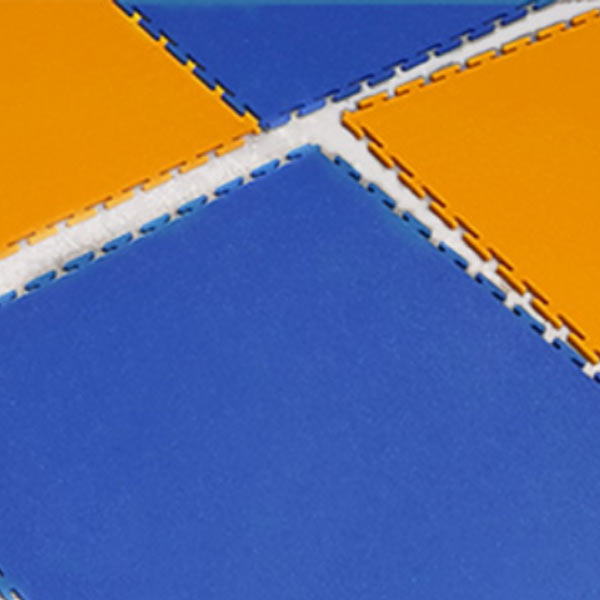

Lock-Tile interlock T-lock design

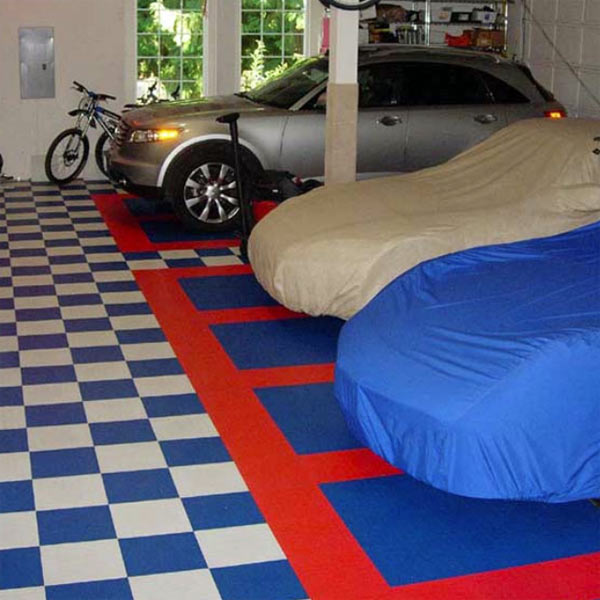

Locktile interlock flooring for garage floors

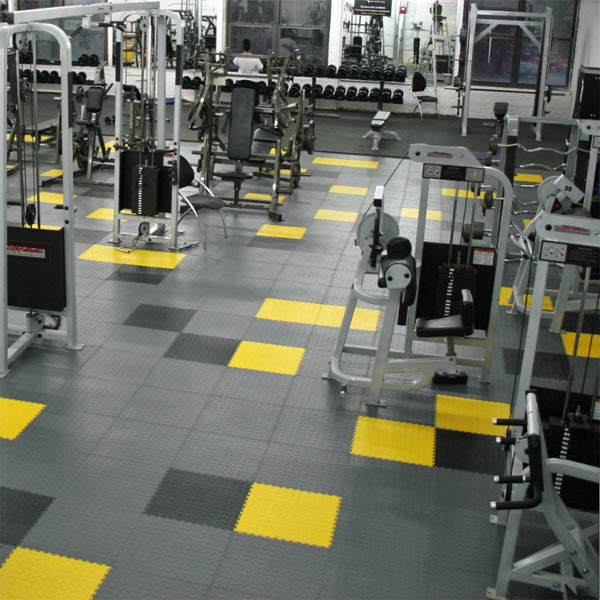

Locktile interlock flooring for gyms
Locktile interlock flooring for industrial use

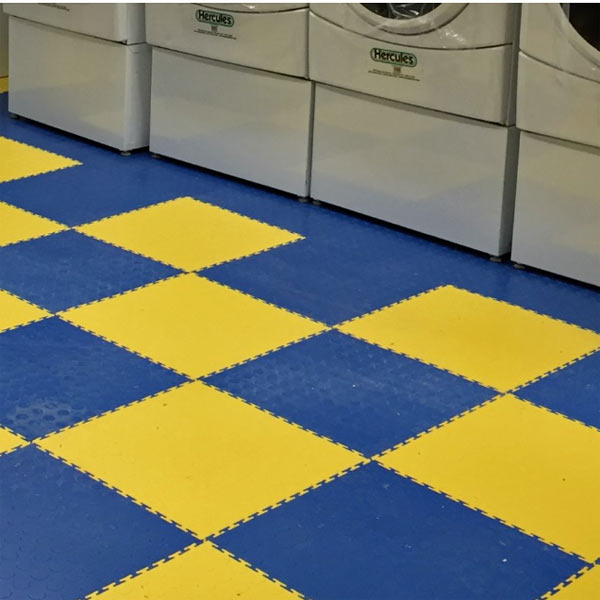

Locktile interlock flooring for laundry areas

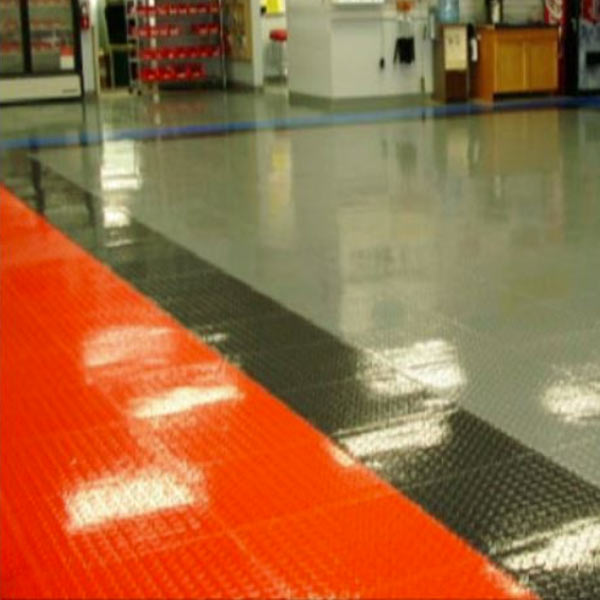

Locktile interlock flooring showroom floors
Lock-tile floor tiles
Lock-tile interlocking tiles coin

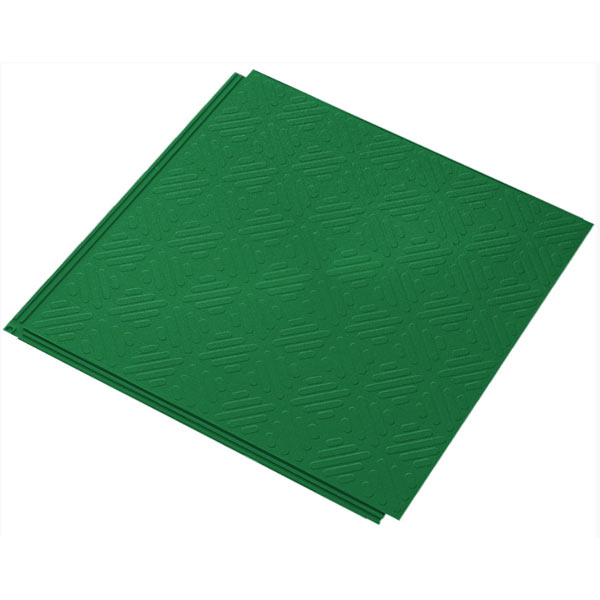

LockTile interlocking tiles pattern
LockTile interlocking tiles smooth
Lock-Tile interlock T-lock design
Locktile interlock flooring for garage floors
Locktile interlock flooring for gyms
Locktile interlock flooring for industrial use
Locktile interlock flooring for laundry areas
Locktile interlock flooring showroom floors

Lock-Tile Floor Tiles

From $11.65

Lock-Tile floor tiles is a tough and flexible interlocking PVC floor tile which provides an “instant” self lay floor surfacing for use in a wide variety of heavy-duty and high traffic areas. By reason of the simple and original “jigsaw” profile used on all its four sides the tiles can be “locked” firmly together in a matter of seconds using only a rubber mallet, enabling a complete floor to be laid, or lifted, with great speed, without a need for expensive labor or professional floor installation.

Order Edging View Price Chart View Color Options
SKU: LT Categories: ,

Description

Lock-Tile floor tiles high density, together with it’s average thickness of 1/4″ tough injection molded 100% PVC compound, ensures excellent quality of both noise reduction and heat insulation. Adhesives are not required for most applications but are recommended when the floor will be subject to heavy and continuous surface moisture levels or exposed to direct sunlight. In such cases, like all floors, the substrate must be smooth, dry and dust free.

Lock-Tile floor tiles have been installed in factories, warehouses, retail stores, post offices, schools, garages, government buildings, airports, sports complexes, ice rinks, fitness/training centers, computer rooms, and many other projects where their slip resistant, easy clean, flame and chemical resistant properties are important considerations.

Lock-Tile Floor Tile Benefits

  • 19 5/8″ x 19 5/8″ x 1/4″
  • Extremely Hard Wearing, resilient and durable.
  • Resistant to most solvents and chemicals.
  • Reduces damage caused by impact, abrasion or vibration.
  • Quick & Simple to Install causing minimum disruption to site activities.
  • Impervious surface ensures ease of maintenance.
  • Provides excellent thermal and acoustic insulation.
  • Good anti-slip and fatigue relieving properties, improving safety and productivity.
  • Layout is flexible, add or take away to suit your changing requirements.
  • Three surface patterns – Coin, Smooth or Pattern

Lock Tile Edging
Locktile Edging



Additional information

Weight N/A
Surface

Raised Coin, Smooth Textured
Colors

Black, Light Grey, Dark Grey, Red, Blue, Lime Green, Green, Yellow, Orange, Brown, Tan, White, Purple

Pricing

Lock-Tile Pricing (All Patterns)
Black, Dark Grey & Light Grey $11.65/tile
All Other Colors $12.85/tile
Black or Grey Edging – ORDER $2.65/ln. ft.

Colors

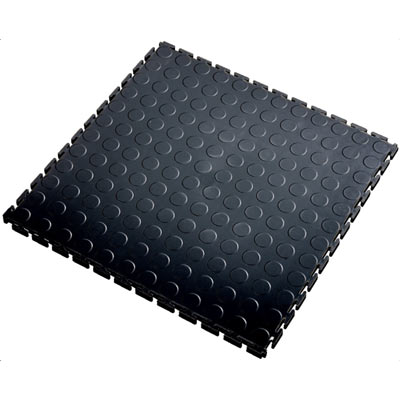

  • Black

    Black

    Black
    Black
  • Dark Grey

    Dark Grey

    Dark Grey
    Dark Grey
  • Light Grey

    Light Grey

    Light Grey
    Light Grey

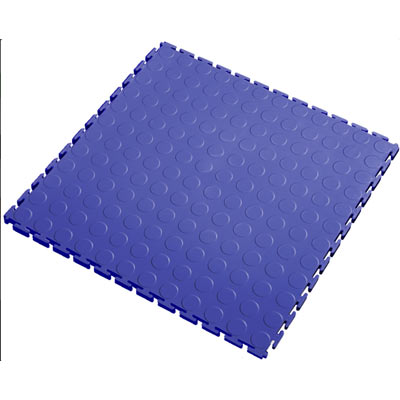

  • Blue

    Blue

    Blue
    Blue
  • Yellow

    Yellow

    Yellow
    Yellow
  • Tan

    Tan

    Tan
    Tan

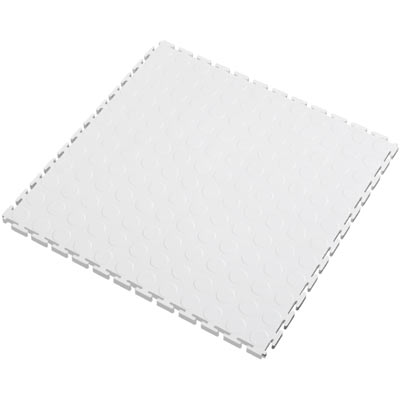

  • White

    White

    White
    White
  • Red

    Red

    Red
    Red
  • Lime Green

    Lime Green

    Lime Green
    Lime Green

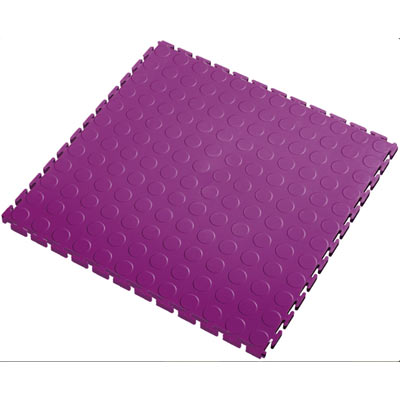

  • Purple

    Purple

    Purple
    Purple

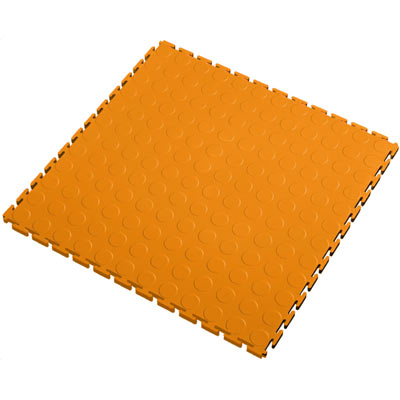

  • Orange

    Orange

    Orange
    Orange
  • Green

    Green

    Green
    Green
  • Brown

    Brown

    Brown
    Brown

Specifications

Lock-Tile Specifications
Composition 100% PVC (100% RECYCLABLE)
BLACK & GRAY 100% RECYCLED PVC
 COLORS 70% RECYCLED PVC CONTENT
Dimensions INDIVIDUAL TILE
FOUR TILES LOCKED TOGETHER
 195/8” X 195/8” (499mm x 499mm)
387/8” X 387/8” (987mm x 987mm)
Thickness 1/4″ or 6.35mm
Weight EACH TILE
PER sq/ft
 4.25 lbs
1.62 lbs
Floor Coverage EACH TILE 2.60 sq/ft or 0.242 sq/m
Wear Lock-Tiles have been tested by the Tetrapod method and after 3,000,000 cycles there was no visible change in surface texture.
Lock-Tile Technical Information
Hardness (SHORE A) 90 (+/- 3) ASTM 2240
Moisture Absorption LESS THAN 3% BY WEIGHT
(72H @70°F)		 ASTM D-0471
Specific Gravity 1.37 (+/- 0.02) ASTM D-792
Tensile Strength 2700 PSI ASTM D-638
100% Modulus 2700 PSI ASTM D-412
Lock-Tile Testing
Passes ASTM E 652-93 SPECIFIC OPTICAL DENSITY OF SMOKE GENERATED BY SOLID MATERIAL
(ALSO REFERENCED AS NFPA 652-93)
Passes ASTM E 648-97A CRITICAL RADIANT FLUX OF FLOOR COVERING SYSTEMS
USING RADIANT HEAT ENERGY SOURCE
(ALSO REFERENCED AS NFPA 253 AS FTM STANDARD 372)
Passes ASTM D-2047 STATIC COEFFICIENT OF FRICTION. CONFORMS TO AMERICANS
WITH DISABILITIES ACT (ADA) SPECIFICATIONS
Passes ASTM D-149-97A DIELECTRIC STRENGTH – EXCEEDED 45 KV
Lock-Tile Chemical Resistance
Acids SULFURIC ACID 95%
NITRIC ACID 70%
HYDROCHLORIC ACID
ACETIC ACID		 NO EFFECT
NO EFFECT
NO EFFECT
NO EFFECT
Alphatics KEROSENE
CHLOROFORM		 VERY SLIGHT SURFACE DULLING
SURFACE DULLING, SURFACE ATTACK
Alkalis SODIUM HYDROXIDE NO EFFECT
Ketones & Esters ACETONE
METHYL ETHYL KETONES		 SURFACE DULLING, SURFACE ATTACK
SURFACE DULLING, SURFACE ATTACK
Alcohols METHYL ALCOHOL NO EFFECT
Aromatics XYLENE
CRESOL		 NO EFFECT
NO EFFECT
Miscellaneous SILVER NITRITE
FORMALDEHYDE
10% BREADLINE
CLOROX		 NO EFFECT
VERY SLIGHT SURFACE DULLING
NO EFFECT
NO EFFECT
Also Resistant to WATER, MOLD, MILDEW, OIL, GASOLINE AND MOST SOLVENTS
Lock-Tile Cleaning & Maintenance
Although Lock-Tile is resistant to oil and most chemicals, it is prudent to remove any spillages as soon as possible. As with any type of floor regular cleaning will maintain Lock-Tiles’ attractive appearance and ensure maximum life for your floor. Regular light cleaning is preferable to infrequent heavy cleaning. After sweeping, any type of mop and general purpose cleaning detergent may be used to clean your Lock-Tile floor. However in order to obtain best results and maximum life from your floor we recommend using a microfiber mop and double bucket mop system available from most hardware or janitorial supply centers, together with a neutral PH cleaning detergent such as Fabuloso® all purpose cleaner. For larger areas a cylindrical scrubber dryer may be used. Lock-Tile has recommended coatings which can be applied to maintain and protect the original beauty of the tile.

Installation

PREPARATION
  • Lock-Tile must be site conditioned at room temperature for 24 hours prior to installation. During this period room temperature should be maintained at 70o F +/- 5o F (21o C +/- 3o C).
  • Remove as much equipment as possible from the work area. Lock-Tile should be laid around rather than under heavy machinery.
  • Thoroughly sweep floor area and remove any debris.
  • Fill any significant holes or cracks.
INSTALLATION
  1. Start by calculating the center of the room. Install tiles from the center working out towards the walls, using a rubber mallet or engineering hammer to connect the tiles.
  2. The tiles can be easily cut with a sharp utility knife, or jigsaw. For best results especially in large installations the use of a band-saw is recommended.
  3. Once all the full tiles have been installed then proceed with the trimmed tiles. A space of 1/4″ (6mm) expansion gap should be left at the walls and any other obstacles such as pillars and extremely heavy equipment.
  4. If required the expansion gap can be filled with a flexible caulk and/or covered with PVC base cove.
  5. In most applications no gluing is required. The only situations that gluing is recommended are:
  • When the tiles will be exposed to direct sunlight.
  • Where there are extremely heavy traffic maneuvers combined with tight turning.
  • Floor is exposed to high temperatures.
  • Tiles are installed in cold temperatures

When gluing is required for best results we recommend the use of TILEBOND 55 (see product information).
COATING For additional; protection and a enhanced look it is worth considering applying 2 coats of TILECOTE 88
TIRE MARKS For applications prone to tire marking especially where marking tires are used on light color tiles, we recommend the application of TIREGUARD 44 on all floor areas that are in contact with the tires. (See product information).
CLEANING
  • As with any type of floor regular cleaning will maintain Lock-Tile’s attractive appearance and ensure maximum life for your floor.
    Regular light cleaning is preferable to infrequent heavy cleaning.
  • After sweeping, any type of mop and general purpose cleaning detergent may be used to clean your Lock-Tile floor. However in order to obtain best results and maximum life from your floor we recommend using a micro fiber mop system with twin compartment bucket available from most hardware or janitorial supply centers, together with a neutral PH cleaning detergent such as Fabuloso all purpose cleaner. For larger areas a cylindrical scrubber dryer may be used.
MAINTENANCE Although Lock-Tile is resistant to oil and most chemicals (see technical specification sheet) Nonetheless, it is prudent to remove any spillages as soon as possible.
