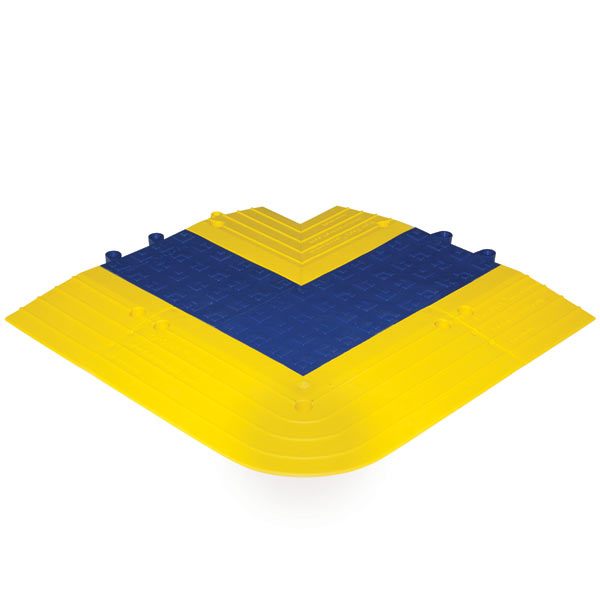

ErgoDeck Cable Bridge Kit
ErgoDeck Cable Bridge Hides cables and cords
ErgoDeck Cable Bridge Kit Underside
ErgoDeck Cable Bridge underside
ErgoDeck Cable Bridge Ramps
ErgoDeck Cable Bridge Kit flat look
ErgoDeck Cable Bridge Kit

ErgoDeck Cable Bridge Kit

From $91.60

ErgoDeck Cable Bridge Kit covers exposed cables and hoses in the industrial work place that pose trip hazards. A common “fix” is using tape or other temporary alternatives. ErgoDeck® Cable Bridge kits contains all the components necessary for long lasting trip prevention. This system allows easy wheeled cart access and the electric blue color calls attention to the location of cables, hoses and wires. Combine with ErgoDeck Cable Bridge straight kits for a complete cable bridge system.

ErgoDeck Cable Bridge Corner Kit: $167.70
ErgoDeck Cable Bridge Straight Kit:
$91.60

Clear

Description

ErgoDeck Cable Bridge Kit is composed of Corner Ramps and Straight Ramps to create a complete cable bridging solution for hiding exposed cables and cords over traffic areas. The bright electric blue color and safety yellow bring immediate attention to by passers that cables are present.

  • For use with any ErgoDeck flooring system.
  • Protect exposed cables and hoses from being a trip hazard!
  • No tools or cutting required.
  • 100% Silicone Free.
  • Available in straight runs and corners.
  • Overall clearance 7/8″.

Additional information

Weight N/A
Select

Cable Bridge Corner, Cable Bridge Straight

Product Specifications

Suitable Environment Dry, Wet, Oily
Type Anti-Fatigue Flooring
Customization Level Customizable length
Solid or Drainage Solid
Compound PVC
Recycled .>80%
Colors Electric blue and yellow
Warranty Lifetime

Test Results

Property Test / Result
Temperature Range 0 to 120 F
Coefficient of Friction ASTM F1677 / Dry: COF = .65 / Wet: COF = .42
Flammability MVSS 302 / ‘A’; Rating
Taber Abrasion ASTM D 3884 / 1% loss
Compression Deflection ASTM D575-91 / 4.84%



Packaging Information:
Available in straight runs and corners

Straight Cable Bridge kit contains:

  • (4) 18” yellow ErgoDeck® ramps
  • (2) 6″ wide blue tiles
  • Dimensions: 18″ wide by 36″ long

Corner kit contains:

  • (1) yellow inside corner
  • (1) yellow outside corner
  • (2) yellow side ramps
  • (2) sections of electric blue ErgoDeck® solid
  • Dimensions: 15″ wide by 15″ long
